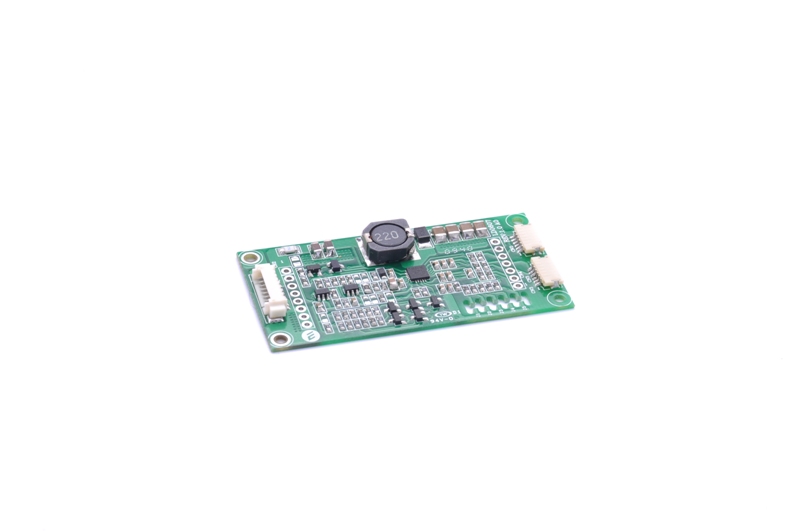

LED Converter - Converter for LED
PS-LD0602-023
LED Converters are required to provide the correct current for LCD´s with LED backlight.
| Parameter | Data | |
| Warranty | 24 Months | |
| Voltage Dimming | 0 ~ 5 Vdc | |
| Operation Temperature | -20 ~ 70 °C | |
| Output Power | 3 W | |
| Output Voltage | 0 ~ 30 Vdc | |
| Input Voltage | 4,75 ~ 13,2 Vdc | |
| Number of Outputs | 6 | |
| Output Current | 28 ~ 32 mArms | |
| Dimming Function | Voltage or Ext. PWM Dimming | |
| Features | 5 Vdc input voltage Wide input voltage range Wide temperature range Dimming function over analogue voltage or external PWM-signal Wide dimming range Optimized for Optrex: T-51750D065J-LW-AKN, T-51750GD065J-LW-AON |
|
| Case | Connector Type | |
| Output Connector | SM06B-SHLS-TF(LF)(SN) | |
| Input Connector | 53261-0890 (Molex) | |
| Manufacturer | Power Systems | |
| Datasheet English |  PS_PS-LD0602-023.pdf |
This low profile LED converter is developed for max. 6 LED-lines.
Optimized for Optrex: T-51750D065J-LW-AKN,
T-51750GD065J-LW-AON
