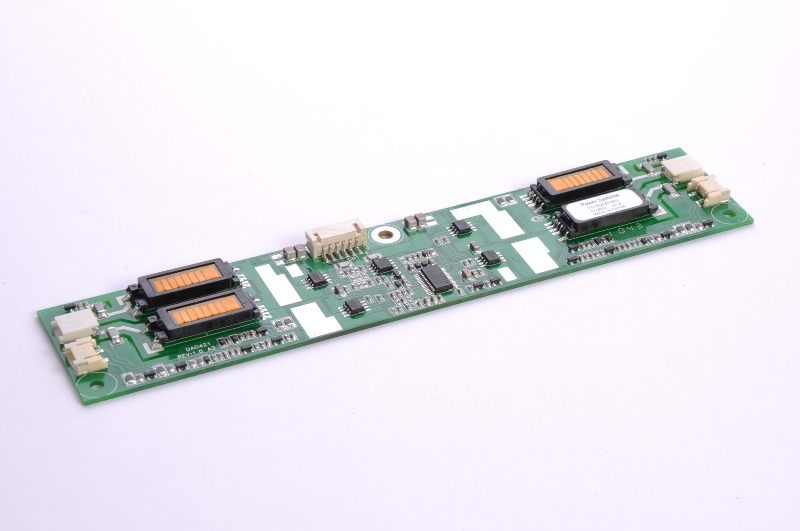

Backlight Inverter - Inverter for CCFL


CCFL-Lamps are mostly used to supply the TFT-Backlight Systems. TDK - the World-Leader- has a very large range of products. Extended temperature range and extreme wide dimming.

Parameter Data
Warranty 24 Months
Voltage Dimming 0 ~ 3,3 Vdc
Operation Temperature 0 ~ 50 °C
Output Power 17 W
Input Voltage 10,8 ~ 13,2 Vdc
Number of Outputs 4
Output Current 5,9 ~ 7,1 mArms
Dimming Function Int. PWM Dimming
Features Dimming function over analogue voltage
Wide dimming range
Optimizied for Hitachi: TX43D57VC0CAA
Case Connector Type
Output Connector SM02B-BHSS-1-TB (JST)
SM02(4.0)B-BHS-1-TB (JST)
Input Connector S6B-PH-SM3-1-TB (JST)
Manufacturer Power Systems
Datasheet English PS_PS-INVC813.pdf
